Nightforce NX8 1-8x24mm F1 .2 Mil, Illuminated, PTL, FC-DMx, Dark Earth (C663)

MSRP: $1,876.00
$1,850.00
(You save $26.00 )
SKU:
NF06630
UPC:
847362022833
Availability:
ships from our shop in 5 to 8 days (+/-)

Nightforce NX8 1-8x24mm F1 .2 MRAD Riflescope with Capped turrets

ATACR 1-8x DE

Professional-Grade LPVO | FC-DMx Reticle | Dark Earth

The evolution of combat optics demands maximum capability with minimum compromise. The Nightforce NX8 1-8x24mm First Focal Plane riflescope represents the intersection of speed and precision, purpose-built for professionals requiring instant target acquisition and extended range precision in a single, combat-ready platform.

Key Features and Benefits:

  • True 1x magnification with daylight visible illumination for CQB scenarios
  • First Focal Plane FC-DMx MRAD reticle maintains ranging at all magnifications
  • Capped, low-profile turrets with .2 MRAD ZeroStop adjustments
  • Integrated Power Throw Lever (PTL) for rapid magnification changes
  • ED glass with proprietary coatings maximizing light transmission
  • Dark Earth finish reducing visual signature
  • 100% waterproof and shock-tested to 1250Gs
  • Assembled in USA under strict quality control

Combat Heritage and Development

Born from SOCOM's requirement for a do-all optic capable of dominating CQB to mid-range engagements, the NX8 series builds upon Nightforce's proven ATACR DNA. While maintaining the legendary durability that professional users demand, engineers shaved crucial ounces through advanced material science and precision manufacturing. The result is an optic that performs alongside heavier competitors while reducing combat load.

Professional-Grade Optical System

The NX8's optical formula starts with Extra-low Dispersion (ED) glass, precision ground to Nightforce's exacting tolerances. Proprietary coatings, developed specifically for tactical applications, maximize light transmission while reducing signature-revealing reflections. The true 1x performance allows both-eyes-open shooting with zero optical distortion - crucial for CQB efficiency. At 8x, the resolution maintains exceptional clarity for positive target identification and precise shot placement.

FC-DMx Reticle Innovation

The First Focal Plane FC-DMx reticle represents the latest evolution in combat-proven designs. At 1x, the daylight visible center crosshair promotes instantaneous target acquisition. As magnification increases, the intelligent MRAD-based holdover tree reveals calibrated references for elevation and wind holds. The reticle's clean design eliminates clutter while providing essential ranging tools.

Advanced Mechanical Engineering

Built on Nightforce's combat-proven 30mm main tube, the NX8 incorporates their ZeroStop technology beneath low-profile, protective turret caps. Each positive .2 MRAD click delivers repeatable precision through hardened steel mechanisms. The integrated Power Throw Lever enables positive magnification changes under stress, while side-mounted illumination controls remain accessible without breaking cheek weld.

Market Position and Tactical Application

Within Nightforce's premium tactical line, the NX8 offers 40% weight savings compared to the ATACR series while maintaining 95% of the optical performance. This positions it ideally for professional users building patrol rifles, entry carbines, or designated marksman platforms where every ounce matters. The Dark Earth finish particularly suits modern battlefield requirements where environmental integration is crucial.

Professional Testing and Validation

Every NX8 undergoes Nightforce's proprietary HALT testing protocol, exceeding military standards for durability. This includes:

  • Submersion testing beyond 3 meters
  • Thermal cycling from -40°F to +160°F
  • Impact resistance to 1250Gs
  • 100% quality control inspection
  • Zero-shift validation through 10,000 rounds

Detail on Reticle

The FC-DMx segmented circle has been increased in diameter from 2MRAD to 4MRAD and made thinner to maintain the same illuminated area. This open center area allows the user a clear view of the target to make fast, unobstructed shoot/no-shoot decisions. The 0.2MRAD (0.7MOA) center dot provides a precise aiming point when at high magnification. A 1MRAD resolution aiming grid allows for simultaneous holds (elevation and wind) to 10MRAD of elevation. The line labels are placed on both the left and right for fast acquisition, and are located to the outside for a clear view of the target within the grid. The unobstructed view of the target, daylight visible illumination, and intuitive labeling of the FC-DMx provide the user with increased capability for both close and far targets.

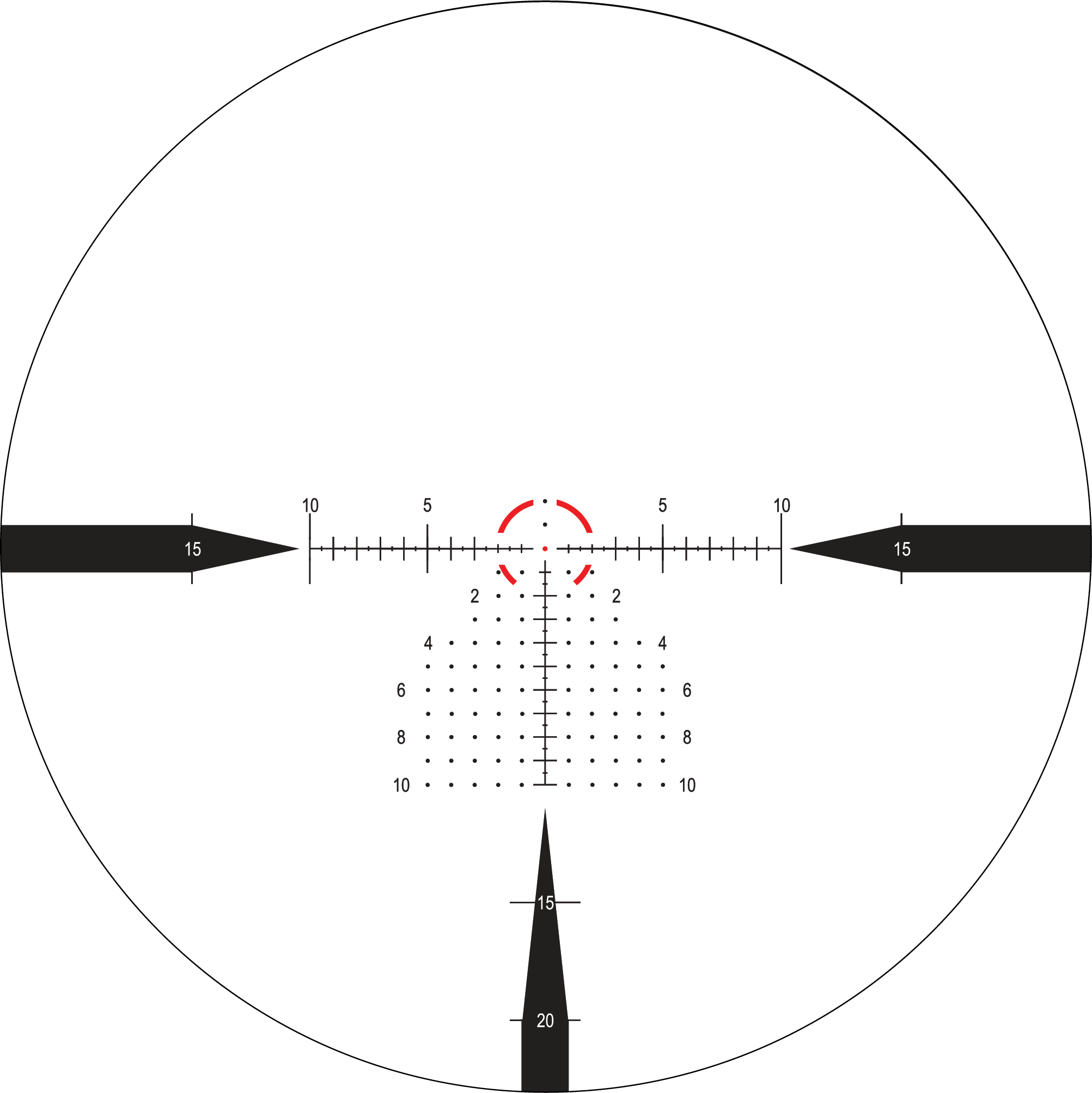

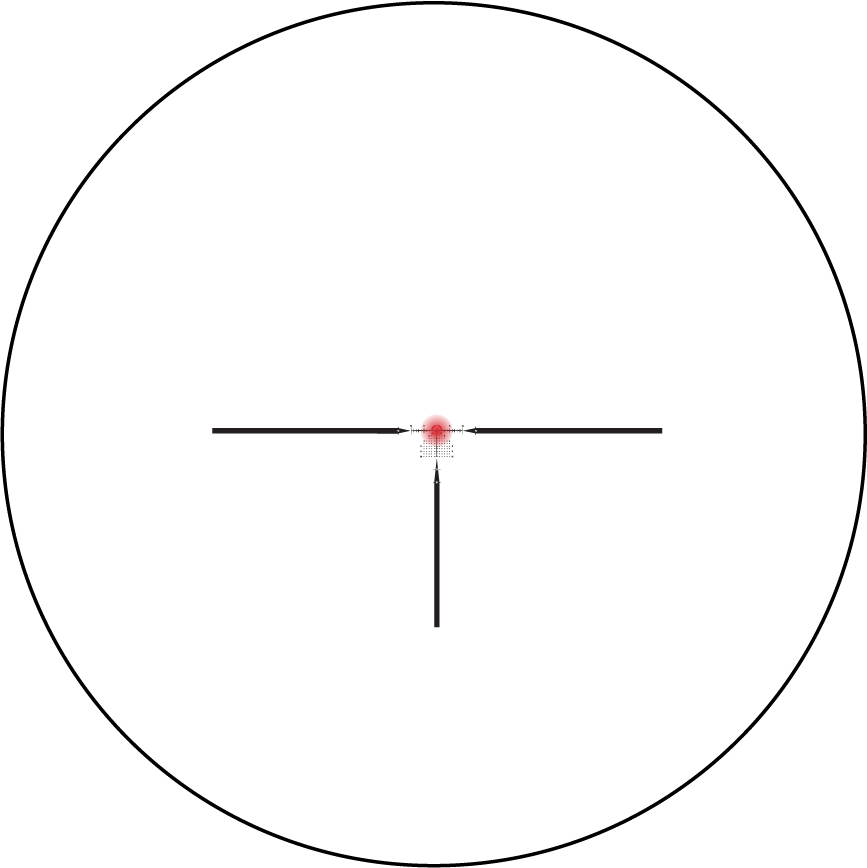

FC-DMx reticle at 1x power  FC-DMx reticle at 8x power

Technical Specifications:

Optical System:

  • Magnification: True 1-8x variable
  • Objective Diameter: 24mm
  • Main Tube Diameter: 30mm
  • Focus System: Fixed parallax at 125 yards
  • Exit Pupil: 8.0-3.0mm
  • Eye Relief: 3.75 inches
  • Field of View @100 yards:Glass Type: ED (Extra-low Dispersion)
    • 106.2 feet (1x)
    • 13.2 feet (8x)
  • Optical Coatings: Fully multi-coated with proprietary tactical coatings

Reticle System:

  • Type: FC-DMx MRAD
  • Focal Plane: First (FFP)
  • Pattern: Tactical tree with daylight visible center
  • Illumination: PTL-activated daylight bright
  • Power Source: CR2032 battery
  • Runtime: 96 hours at medium setting

Adjustment System:

  • Type: Capped tactical turrets with ZeroStop
  • Click Value: 0.2 MRAD
  • Adjustment Range:Zero System: ZeroStop with return-to-zero function
    • Elevation: 30 MRAD total travel
    • Windage: 20 MRAD total travel
  • Adjustment per Revolution: 10 MRAD

Physical Specifications:

  • Overall Length: 8.75 inches
  • Weight: 17 ounces
  • Tube Material: 6061-T6 aircraft aluminum
  • Finish: Dark Earth Mil-Spec Type III hard anodize
  • Construction: Single-piece main tube
  • Origin: USA assembled, Japanese glass

Environmental Ratings:

  • Waterproof: 3 meters minimum
  • Internal Protection: Nitrogen purged
  • Operating Temperature: -40°F to +160°F
  • Impact Rating: 1250Gs
  • Submersion Tested: Yes
  • Fog-proof: Yes
