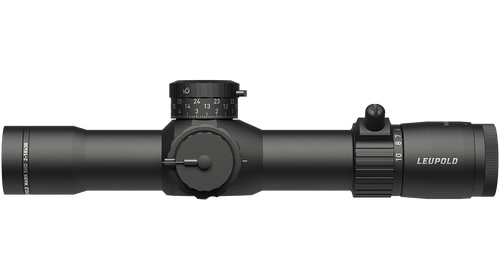

Drawing from the same engineering standards as SOCOM-selected optics, the Leupold Mark 5HD delivers exceptional performance for precision shooting applications. The 3.8-18X44 model was chosen for the M110 SASS while the 5-25X56 was picked for the M22 Mod 0 sniper rifle. The 2-10X30 is Leupold's newest addition to this premium line.
Rugged yet lightweight. Following the heritage of Mk12 SPR optics, the 2-10X30's 5X zoom ratio offers versatile field of view. The CMR-MIL reticle integrates an illuminated dot and horseshoe above a hashed mil tree, enabling rapid target acquisition up close while maintaining precision at extended ranges. Superior light transmission and clarity are achieved through premium glass and Leupold's Professional-Grade Optical System. The 35mm main tube provides ample adjustment range for demanding long range competitions. A locking three-turn elevation turret features positive clicks and a revolution indicator, while an included power throw lever enables quick magnification changes. Like all Leupold optics, the Mark 5HD is manufactured in America. They are waterproof, fogproof, shockproof, and guaranteed for life.
| Specification | Value |
|---|---|
| Reticle | CMR-MIL (Illuminated) |
| Finish | Black |
| Weight | 24 oz |
| Tube Diameter | 35mm |
| Objective Lens Diameter | 30mm |
| Magnification Range | 2-10x |
| Eye Relief | 3.6" (2x) - 3.7" (10x) |
| Field of View @100yd | 52.9 ft (2x) - 10.5 ft (10x) |
| Angular FOV | 10° (2x) - 2° (10x) |
| Parallax Adjustment | Side Focus (40yd minimum) |
| Elevation Adjustment | 0.1 MIL per click |
| Elevation Range | 48 MIL total |
| Elevation per Revolution | 10.5 MIL |
| Elevation Travel Limit | 30 MIL |
| Windage Adjustment | 0.1 MIL per click |
| Windage Range | 23 MIL total |
| Windage per Revolution | 10 MIL |
| Battery Type | CR2032 |
| Battery Life | 1800hr (low) / 96hr (high) |
| Illumination Settings | 7 levels |
Pictures courtesy of Leupold and Stevens and The Firearms Blog
