Leupold Mark 5HD 2-10X30 M5C3 FFP TMR - Illum

when in stock, ships from our shop in 5 to 7 days (+/-)
Optics Purchase Requirement:
validation required for new customers

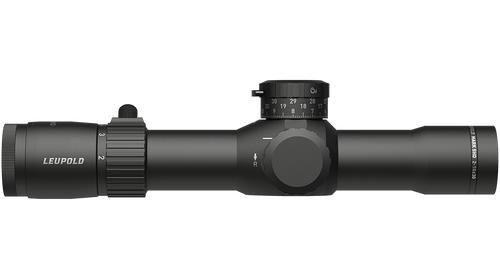

Leupold Mark 5HD 2-10X30 M5C3

First Focal Plane - Illuminated TMR reticle

Built to the same exacting standards as the scopes chosen by SOCOM, the Leupold Mark 5HD provides discerning shooters a lightweight and durable optic for any precision shooting need. The 3.8-18X44 variant has been picked for the M110 SASS while the 5-25X56 has been selected for the M22 Mod 0 sniper rifle. Leupold has recently added the mid-range 2-10X30 to the lineup.


  • Proven Mark 5HD platform
  • Low-power to midrange
  • Build off a history of small caliber sniper rifle performance
  • First Focal Plane
  • Illuminated reticle - TMR - with familiarity for years based upon mildot
  • Lightweight and compact
  • Familiar and easy to use TMR mil based reticle
  • Side focus
  • 35mm tube provides 34.9 mils of elevation in 0.1 mil increments
  • Great near-clone optic for Mk12 Mod 1

Lightweight and durable. Hearkening back to the lineage of the Mk12 SPR optics, the 2-10X30 and its 5X magnification range provide ample field of view. This optic is capable of clearing courses and topping podiums. Excellent light transmission and image clarity come from high quality glass and Leupold’s Professional-Grade Optical System. The 35mm main tube gives the erector system plenty space for the adjustments that demanding long range competitions require. A locking three-turn elevation turret features tactile clicks and a revolution indicator, while an included power throw lever makes magnification changes smooth and fast. Like all Leupold scopes, the Mark 5HD is manufactured in America. They are waterproof, fogproof, shockproof, and guaranteed for life.

This version is first focal plane with a TMR reticle to give the shooter plenty of hold points to work with in the reticle. At 2X, CQB range targets are able to be engaged with ease, while 10X pushes things into mid-range territory for versatility.



  • Adjustable Parallax: Side Focus
  • Revolution Indicator: Yes
  • Reticle Type: First Focal Plane
  • Reticle: TMR
  • Illuminated: YES
  • Weight: 24 oz.
  • Elevation Adjustment Value per Click: .1 MIL
  • Elevation Adjustment Range: 48 MIL
  • Elevation Adjustment Per Revolution: 10.5 MIL
  • Elevation Dial Travel Limit: 30 MIL
  • Windage Adjustment Value per Click: .1 MIL
  • Windage Adjustment Range: 23 MIL
  • Windage Adjustment Per Revolution: 10 MIL
  • Objective Lens Diameter: 30mm
  • Linear FOV Low Mag: 52.9 ft @ 100 yds
  • Linear FOV High Mag: 10.5 ft @ 100 yds
  • Angular FOV Low Mag: 10 Degrees
  • Angular FOV High Mag: 2 Degrees
  • Eye Relief Low Mag: 3.6"
  • Eye Relief High Mag: 3.7"
  • Minimum Parallax-Free Distance: 40 yards


Pictures courtesy of Leupold and Stevens and The Firearms Blog
