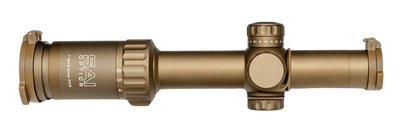

The SAI 6 1-6x24mm Riflescope was built with ruggedness and versatility at the core of its design. The SAI 6 comes packed with features that other scopes of this class fail to include, notably the Rapid Aiming Feature. This proprietary reticle option is a large open “X” which is excellent for quickly acquiring and engaging targets at close range. The reticle also has a free-floating center cross with hash marks directly below to compensate for elevation as well as windage compensation holdover dots in the “Christmas tree” setup. The SAI 6 also has a VSOR rangefinder in the lower left-hand corner of the reticle, this feature allows the shooter to accurately estimate the range of objects with a known height. In addition, the reticle is in the first focal plane so the reticle shrinks and grows as you zoom in or out with your target for greater flexibility at any range.
NEW! The The SAI™ 6 now has a limited lifetime warranty against manufacturer's defects.
The SAI™ 6 series of optical sights provide a rugged and versatile solution for a variety of sighting requirements in variable magnification. With an LED-illuminated First Focal Plane reticle, ranging and ballistic hold-off is accurately achieved at any magnification. The proprietary Rapid Aiming Feature™ reticle and superior field of view enhance close-quarter effectiveness. The ruggedized tubular design allows for a variety of modular mounting solutions.
The SAI™ 6 series is designed to accommodate advanced optical sighting system enhancements such as flip covers, Anti-Reflection Devices, laser filters, and polarizers. SAI™6 series sights are designed for brilliant optical performance in rugged environments.
| Magnification | 1x-6x |
| Length | 10.1 inches |
| Width | 2.6 inches |
| Height | 2.1 inches |
| Weight | 18 oz |
| Tube Diameter | 30mm |
| Objective lens diameter | 24mm |
| Eyepiece diameter | 46mm |
| Field of View @ 1x | 22 degrees (38.8m @ 100m) |
| Field of View @ 6x | 3.7 degrees (6.5m @ 100m) |
| Diopter range | -3 to +3 |
| Eye relief | 90mm (3.54in) nominal |
| Exit pupil @ 1x | 9.5mm |
| Exit pupil @ 6x | 4.0mm |
| Re-zero mechanism | Finger adjustable |
| Internal Adjustment Range: Elevation | 35mrad (120 MoA) |
| Internal Adjustment Range: Windage | 35mrad (120 MoA) |
| Adjustment Resolution | 0.1mrad |
| Adjustment direction | Counter-clockwise up, counter-clockwise right |
| Fixed focus range | 110m |
| Crosshair illumination | LED, red, 10 settings |
| Battery type | CR2032 3v lithium |
| Exterior finish | Type II Anodized, matte flat dark earth |
| Storage Temperature | -51C - +85C |
| Operating temperature | -40C - +65C |
| Waterproof | 2 hour @ 3 meters |
| Shockproof | 1000g's @ 10,000 cycles |
SAI6 Calibrated in 5.56 NATO : Part Number RNG16-T170-C10 | UPC- 666595000582
