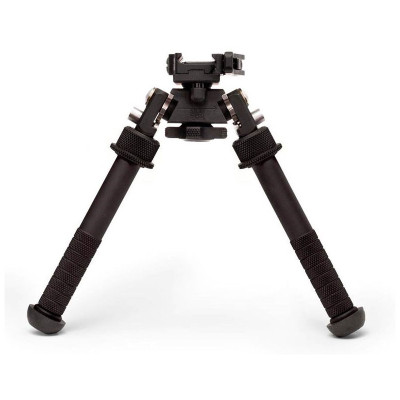

Atlas PSR Standard Height with ADM Quick-Detach 170-S Lever
There are lots of choices in bipods. Atlas from B&T Industries is one of the best. This is the most popular Atlas Bipod, adpoted by SOCOM.
Model BT46-LW17
The BT46-LW17 PSR (Precision Sniper Rifle) Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever. It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. The BT46-LW17 was selected for the SOCOM PSR (Precision Sniper Rifle) Weapons System. Available in black only.
Height Range: 4.75 – 9.0" approximately
Preloaded Pan: 15 degrees +/-
Preloaded Cant: 15 degrees +/-
Fore and Aft pivot limiting Bosses
5 leg positions: 0, 45, 90, 135 and 180 degrees
Non-Rotating Legs: outer leg does not rotate around inner leg
Larger, stronger inner legs
Weight: 13.61 ounces
Footprint: 8 – 11"
Designed, Engineered, Machined & Assembled in America.
LW17: Lever Mount With ARMS 17S Mount
UHMW components used for smooth tracking
Preload on Pan and Cant can be tightened by means of the knurled knob
Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions ¾” apart
Standard soft, durable Rubber feet that are suitable for many surfaces
