Allen Engineering M24 Suppressor - OPS Inc 3rd Model Design

$1,000.00
SKU:
AE009240
Availability:
when in stock, ships in 2 to 3 weeks to your local dealer, ATF approval required
Limited Availablility:
we get regular shipments, but not always in stock
OPS Inc 3rd Model suppressor for the US Army M24A2 sniper rifle

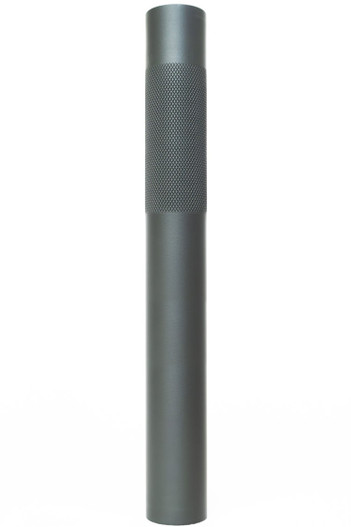

Allen Engineering OPS Inc 3rd Model Suppressor for the M24 Sniper Rifle


As originally made by Allen Engineering for OPS Inc, now reproduced again

This is a factory M24 Suppressor, used by the US Army on the M24A2 sniper rifle.  This model is made by Allen Engineering in Orem, Utah, and is the exact same model that was made in the 1990s by Ron Allen, when he was building the suppressors for Phil Seberger at OPS Inc.  This has been keep true to form, and ready for you to mount to your M24 custom sniper clone rifle.

In the late 1980's, OPS Inc. was awarded a contract from the US Army for the reconfiguration of their M24 sniper rifle.  The new design incorporated a flange or taper on the barrel, for which the OPS Inc 3rd model would rest against, forming a bound for the over-the-barrel suppressor design that Phil Seberger pioneered.  The design was mostly to provide a means to remove the suppressor, and put in a rifle case and reattach and assure a return to zero, and the 3rd Model did this, as well as providing a gas block at the rear.  It is hard to imagine now, but at the time of the M24A2, and the 3rd Model suppressor, OPS Inc was the technology leader for suppressors, and the US military led the way with progress in the 1980s and 1990s.

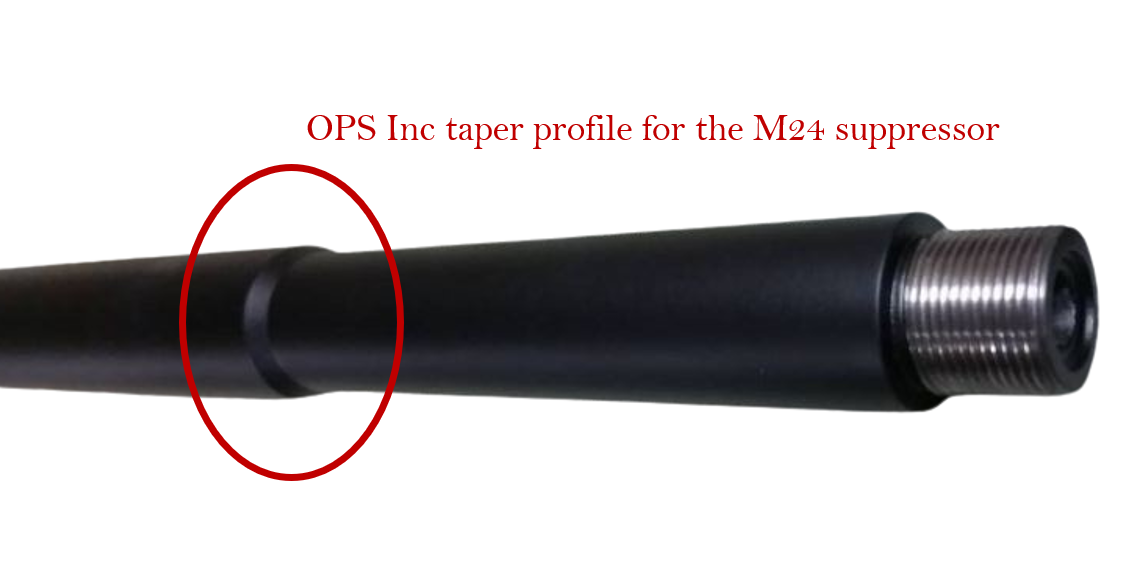

The following shows the taper that is needed on a barrel to accept the M24 OPS Inc 3rd Model design




As you can read in this history of OPS Inc. and Ron Allen's involvement, Ron's company, Allen Engineering, provided the manufacturing and engineering for OPS Inc. from 1993 forward, long before other current suppressor brands were even thinking about designing suppressors.  The current production M24 Allen suppressors are now made in Utah, and true to the OPS Inc. design.  The suppressor is installed to reach back and touch the taper on the barrel.  But, one can also install an SPR collar to handle the same function, but that would involve contouring the barrel down quite thinner than most .30 caliber barrels, but is an option.  The suppressor itself screws onto standard 5/8-24 threads.

Specifications

  • Architecture:  Over the Barrel design with Stainless tube and welded baffles
  • Barrel threads:  5/8-24
  • Caliber:  .30 cal
  • Material: 304 stainless
  • Length: 12.25″
  • Weight: 30oz
  • Mount length: 4.52″

Note:  Charlie's is an authorized distributor of Allen Engineering products.  If you are working on a special build, ask your gunsmith to contact us.

Buying and shipping through Charlie’s is easy, but there is some information you need to know. This item must ship to FFL holder. No civilian exceptions.

       1)  Check your state laws to make sure the federally regulated item you want to purchase is legal in your state.

       2)  Find your FFL… Have your dealer send us a copy of their FFL and SOT info to Charlie’s (Make them earn their fee!!!). Not every FFL holder is also and SOT or Class 2 / Class 3 dealer.

       3)  Be patient! You should hear from our compliance department within 3-4 business days. If not, feel free to reach out for a status update.

That’s it! We try to make this process as simple as possible for our customers. Please click the “Buying a Firearm” tab at the top of this page for more information.  Also see our Guide to Buying a Suppressor Online


THIS IS A SERIALIZED ITEM.  It must ship to a Federal Firearms License holder.  No civilian exceptions.

Buying and shipping through Charlie’s is easy, but there is some information you need to know. Only a federally licensed firearms dealer may receive a firearm or federally regulated serialized item (like a receiver or suppressor). We cannot ship these items directly to you. Please follow these steps to process your transaction:

1)     Check your state laws to make sure the federally regulated item you want to purchase is legal in your state. Your FFL dealer should be able to give you all of the necessary information regarding your state specific laws. But, if we ship to your FFL, and there is a legal issue, we cannot accept a return. So please make sure that you know and follow your local and state laws.



2)     A quick google search will show you what Federal Firearms Licensed (FFL) dealers are in your area. When you are ready to purchase, contact the FFL dealer you would like to use and get their shipping address. During the check-out, put YOUR address in the “billing” section and the FFL DEALER’S address in the “shipping” section. If you don’t know your FFLs address, that’s okay. You can send the information later.



3)     After check out, make sure to contact your FFL dealer to ensure they will receive your shipment for you (most do this for a small fee, but you should always double check).



4)     Have your dealer send us a copy of their FFL to FFL@CharliesCustomClones.com. Charlie’s does not reach to your FFL (MAKE THEM EARN THEIR FEE!!!)



5)     Be patient! In order to ensure we remain compliant with all federal laws, our compliance department is kept separate from our sales and operations team. Please allow a few days for our compliance officer to verify all of your dealer’s documents and ensure all federal laws are being observed. You should hear from our compliance department within 3-4 business days. If not, feel free to reach out for a status update.



That’s it! We try to make this process as simple as possible for our customers, but if you are unfamiliar the process or have any other questions, please visit our How to Buy a Suppressor page for more details.
