Cadex CDX-50 Tremor Action - for .50 BMG and .416 Barrett

$2,498.95
SKU:
CA97050000
Availability:
Custom Made, FFL needed to ship
Custom Built to Order:
expect 3 month lead time

Cadex CDX-50 Tremor Action - for .50 BMG and .416 Barrett


Large XL bolt-action for .50 BMG and .416 Barrett

The Cadex CDX-50 Tremor action has made a name for itself, as the action inside the Tremor rifle, which is one of the most popular .50 caliber precision rifle sold in the USA.  Now, the bolt and receiver is available for sale.  Cadex custom makes each action with precision accuracy in their CNC machines to be within the tightest tolerances in the World, achieving accuracy under 1/2 of 1/1000th of an inch.

Features

  • Custom precision action - made to order
  • Machined from a single 416 Stainless billet
  • DLC coated spiral fluted bolt
  • 4 lug bolt architecture and dual ejectors with 0.825" bolt face
  • 50 degree bolt throw
  • Accepts .50 caliber BMG and .416 caliber Barrett rounds
  • Choice of standard repeater design or single shot
  • Choice of round or cylinder shaped bolt knob
  • Your choice of colors for Cerakote finished receiver
  • 20 MOA Stainless Picatinny rail top, optionally removable
  • Compatible with Cadex 2-stage triggers and most Remington style triggers

The CDX-50 Tremor action is a massive action at almost 12” long and 2” in diameter, precision CNC machined from a solid piece of stainless steel. The CDX-50 action was designed from the ground up to offer extreme accuracy and consistency not seen before in a 50 BMG-sized action. The Cadex Type "F" 4-lug design and 50-degree bolt throw is the fastest running bolt on the market in this class of actions. Combine this with a Cadex designed firing pin assembly for faster lock times, oversized extractor, and double ejectors, for an action that can handle the demanding needs of military and targets shooter alike. The CDX-50 is a proprietary Cadex footprint, but Cadex also offers CDX-50 bottom metal for traditional stocks as well.

RECEIVER SPECIFICATIONS

  • Machining: CNC
  • Length: 11.9″
  • Diameter: 1.960″
  • Thread: 1 1/2″-18 tpi
  • Hardness: 41-43 HRC
  • .420″ hardened steel recoil lug
  • 10-32 top rail screws
  • Includes a 20 MOA stainless steel Picatinny rail
  • Oversize bolt stop pin
  • Unique top rail localization system with integrated recoil groove machined into the action upper section
  • Magazine cut out: Cadex SSSF
  • Cadex footprint
  • Compatible with most Rem style triggers
  • Deep laser engraving markings

BOLT SPECIFICATIONS

  • Machining: CNC
  • Firing pin: Cadex design with improved lock time
  • Cadex heavy duty extractor
  • Ejectors: Rem style double ejectors
  • Easy 1/4 turn tool-free bolt disassembly
  • Hardness: 43-45 HRC
  • Easy firing pin assembly replacement
  • Shroud: Cadex design with 2 position top safety
  • Operating handle: Multiple bolt knob styles
  • Bolt stop: Cadex design
  • Spiral fluted 4 lug bolt with 50° bolt throw for ultra-fast cycling
  • Cadex design cocking piece
  • Bolt face type F

Bolt Knobs - Your Choice of Round or Tactical Hash Marked

round.jpg           tactical-hash.jpg

Note:  Round Bolt Knob and Repeater will be assumed.  For Tactical Hash knob and/or single shot, enter the comments at check out.

Available Colors

tremor-action-blk-scaled.jpg  tremor-action-tan-scaled.jpg

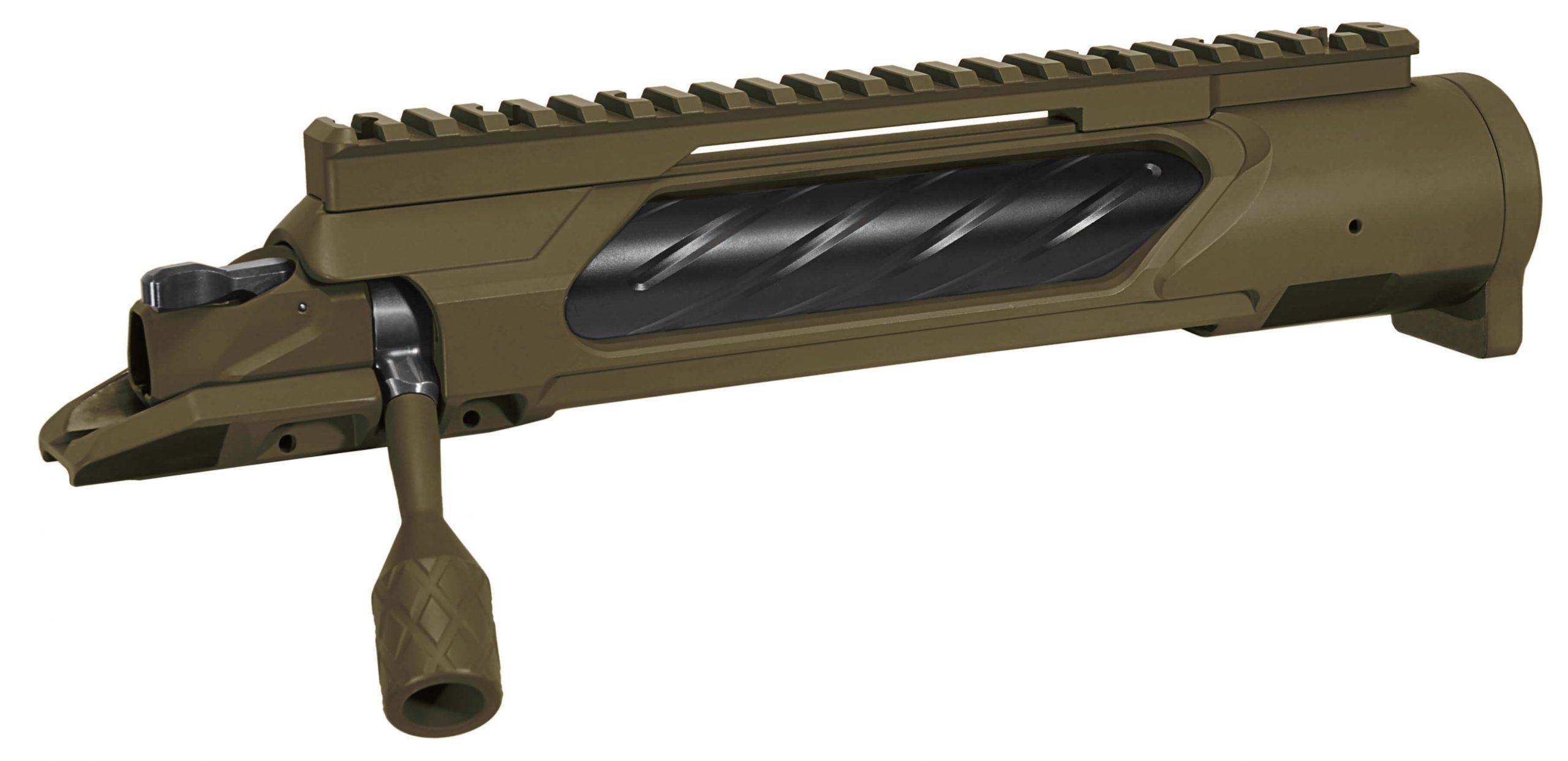

tremor-action-odg-scaled.jpg  tremor-action-ssv-scaled.jpg

tremor-action-gry-scaled.jpg  tremor-action-wht-scaled.jpg

tremor-action-org-scaled.jpg  tremor-action-egg-scaled.jpg

Details

Dimensions:          12.32″ x 3.88″ x 3.93″
Weight: 5.44 lbs
Rockwell Hardness (bolt)   45
Receiver Thread Pitch  1-1/2"-18
Material: Stainless 416
